Pre-Stretch Rollers

Elastomont manufactures high-performance Pre-Stretch Rollers designed to cut your packaging costs by up to 50%. Compatible with major pallet wrappers like Wulftec, Lantech, Orion, and Cousin, our rollers feature a proprietary High-Grip Polyurethane coating that maximizes film elongation without slippage or tearing. Whether you need OEM replacements or custom-refurbished rollers, we ensure your specific pre-stretch ratio (200%-300%) is maintained, guaranteeing optimal load stability and minimizing plastic waste.

Optimize your packaging line today – contact our experts for a custom pre-stretch roller.

Request a technical consultation

How Pre-Stretching Works?

A pre-stretch roller (or pair of primary/secondary rollers) is a key component of pallet wrapping machines that stretches plastic film before its application on the load. This step prepares the film for optimal wrapping, ensuring that each layer adheres correctly to the pallet and products.

Using a pre-stretch roller offers several advantages:

Cost Reduction: By pre-stretching the film, up to 50% less material is needed to secure each pallet, directly reducing your consumable costs.

Enhanced Stability: Stretched film has an "elastic memory" that allows it to continuously tighten, ensuring perfect load retention during transport.

Operational Efficiency: A controlled stretching process reduces film breaks and machine stops, improving overall productivity of your packaging line.

Optimal Protection: Uniform and tight film application protects the load against dust, humidity and scratches.

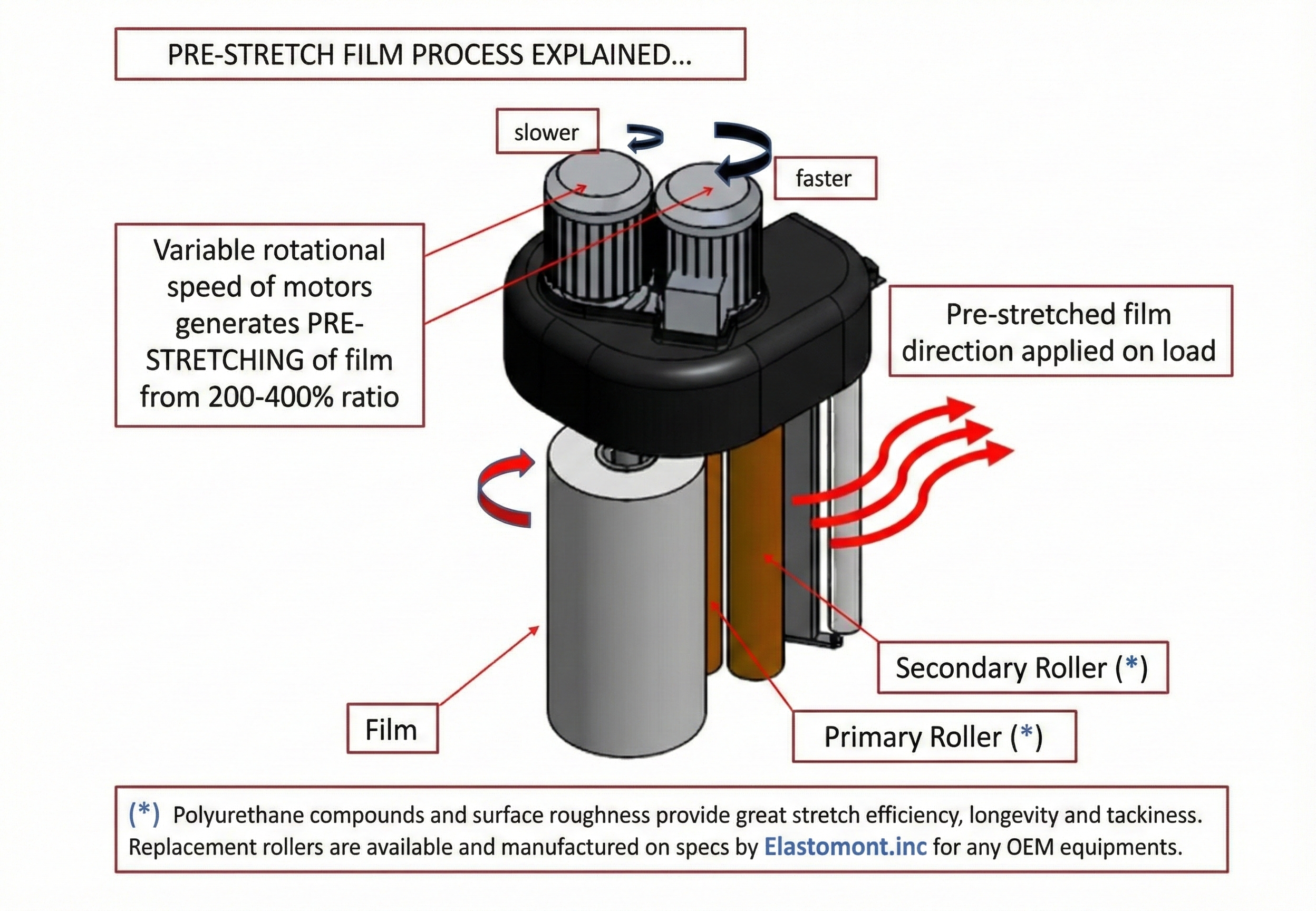

$Technical diagram illustrating the film pre-stretch process, showing the difference in speed between the primary and secondary rollers to create a stretch of 200 to 400%. The text notes that the custom polyurethane rollers are manufactured by Elastomont.inc."}, {“alt_text_en”: "Technical diagram explaining the film pre-stretch process, showing the speed difference between primary and secondary rollers to create a 200-400% stretch ratio. The text notes that the custom polyurethane rollers are manufactured by Elastomont.inc.$

The pre-stretching process

The pre-stretch process is a precise mechanical operation that takes place inside the wrapping carriage. It works using a system of two rollers: the primary (feed) roller, which pulls the blank film from the reel, and the secondary (pre-stretch) roller, which rotates at a higher surface speed.

This difference in speed between the two rollers stretches the film in a controlled manner before it even wraps around the load. This process activates the film's “elastic memory,” improves its strength, and significantly reduces material consumption.

Five industrial pre-stretch rollers for pallet wrappers, manufactured in Montreal, featuring red, blue, black, teal, and yellow textured rubber coatings, resting on a stainless steel table.

Caractéristiques techniques de nos rouleaux

Sustainable Design

Robust metal core and high-quality polyurethane or rubber coating for maximum abrasion resistance and long service life.

Machining Accuracy

Manufactured to ensure perfect balance and constant rotation, eliminating vibrations for uniform film application.

Universal Compatibility

Designed to integrate seamlessly with a wide range of machines, either as a direct replacement for original parts or as an upgrade.

Minimal Maintenance

Equipped with high-quality bearings for reliable, uninterrupted operation, reducing downtime.

Composite image showing industrial pre-stretch rollers and their application. Top left: four textured rollers (two teal, one black, one dark blue) used for stretching film. Top right: a pallet wrapper machine in operation, applying stretched film to a pallet load. Bottom: close-ups of the rough rubber texture of the rollers and their metal shafts and bearings.

Manufacturing Expertise & Custom Engineering

At Elastomont, we go beyond standard supply. With over 20 years of manufacturing expertise, we engineer solutions that optimize the efficiency of your packaging line.

Complete Pre-Stretch System Fabrication

We manufacture both critical components of the pre-stretch carriage ensuring perfect synchronization:

Primary Roller (Feed Roll): Designed with high-tack rubber to pull film smoothly from the supply roll without slippage.
Secondary Roller (Stretch Roll): Engineered to spin at a higher velocity. The precise balance and friction coefficient between these two rollers are crucial for maintaining the target stretch percentage (e.g., 200%, 250%, or 300%) without snapping the film.

Advanced Customization Options

Custom Durometers: We adjust the rubber hardness (Shore A) to balance grip vs. wear life based on your film type.
Modified Diameters: We can machine rollers to oversized or undersized diameters to fine-tune the pre-stretch ratio effectively.
Core Fabrication: Custom machining of Steel or Aluminum cores for obsolete or specialized machines.
Special compounds: Oil-resistant formulations and high-performance applications
Specialized adaptation: We also modify the rollers to adapt to specialized equipment such as stretch netting.

Wide panoramic view of a busy industrial warehouse where four automated pallet stretch wrapping machines are wrapping pallets of boxes, connected by a roller conveyor system, with workers and forklifts in action.

Industrial Applications & Key Sectors

Our high-performance pre-stretch rollers are the backbone of packaging lines across critical sectors, ensuring loads arrive safely:

Manufacturing & Production:

Essential for pallet unitization of finished goods, providing a tight, secure seal that protects products against moisture, dust, and environmental contamination before shipment.

Warehousing & 3PL Logistics:

Critical for high-volume wrapping operations. Our durable rollers maintain consistent pre-stretch ratios, minimizing film cost-per-pallet and maximizing daily throughput.

Distribution Centers:

Focused on load stability and safety. A perfectly wrapped pallet prevents shifting during transit, significantly reducing product damage claims and rejected deliveries.

Have Specific Requirements? Don't settle for generic parts. Get a competitive quote for rollers tailored to your specific machine brand and film type.

Get Your Custom Quote

Standard OEM Cross-Reference & Stock List

Our pre-stretch rollers are manufactured to exact OEM dimensions for the most common film carriage assemblies. The table below lists the part numbers and size combinations we typically maintain in stock for immediate dispatch.
Don't see your specific part number? These are just our most popular items. We manufacture custom dimensions upon request for any machine brand.

OEM / Brand	OEM Part Number	Compatibility / Notes
ARPAC (nVenia)	848315	Infrapak / Pro-Series UW-4036-L/H
Cousins	W269HP/LP	2100, MX3300, and standard LP/HP series
Cousins	W322LP/HP	2100-SRT, 3300-CTA series
Cousins	W323LP/HP	2100-SRT, 3300-CTA series
Highlight Industries	500168	Standard Highlight carriages
Highlight Industries	600010	Standard Highlight carriages
Highlight Industries	600098	Predator XS series
ITW Mima / Signode	03-01265-201	Mima / Signode Carriages
ITW Mima / Signode	03-01266-201	Mima / Signode Carriages
ITW Muller / Octopus	8080-3630-0001	R1500 / Raptor 1525 / Gale Wrap
Lantech	30059870	Standard Q-Series / S-Series Roller
Lantech	30210347	Q200 / Q300 / Q400 (Check specific model)
Lantech	31003137	Replaces 30074116 (Q-Series)
Orion (ProMach)	420916	Flex / Sentry (L7/7/17, H66/17 models)
Orion (ProMach)	420917	Flex / Sentry (L7/7/17, H66/17 models)
Orion (ProMach)	420917RB	Rebound / High-Grip Version for above series
Phoenix Wrappers	2100-27	PLP2100 / PLP2200
Phoenix Wrappers	P200813A	PLP-2150
Phoenix Wrappers	P200818A	PLP-2150
Phoenix Wrappers	P304326	PRRA 2100 (Rotary Ring)
Robopac (Aetna)	3740310810	Rotoplat / Masterplat series
Robopac (Aetna)	5650310226	AETNA / ROBOPAC (Select 4FORI)
Robopac (Aetna)	5650310518	Rotoplat / Technoplat (Model dependent)
SIAT	S332944600	AMW2 Carriages
SIAT	S332944700	AMW2 Carriages
SIAT	BA0003467	Viking / OneWrap / ProWrap (Check config)
SIAT	BA0003469	Viking / OneWrap / ProWrap (Check config)
SIAT	BA0008124	Viking / OneWrap / ProWrap (Check config)
Signode / Octopus	02491300	Octopus / S-Series (Also 056-02491300)
Signode / Octopus	02670500	Octopus 1835S
Wulftec	0MR0L00010	WCRT / WCA / WRT Series (Very Common)
Wulftec	0MR0L00028	Standard Wulftec Carriage Roll
Wulftec	0MR0L00030	Standard Wulftec Carriage Roll
Wulftec	0MR0L00042	Standard Wulftec Carriage Roll
Wulftec	0MR0L00163	Standard Wulftec Carriage Roll
Wulftec	7MPRE00257	No-Thread SMART™ Carriage Roller

How to Order – Simple 3-Step Process

Complex Application or Specific Requirements? Whether you need a single replacement or a fleet upgrade, our process is streamlined to get you the right part, fast.

1. Submit Your Specifications

Provide the Make and Model of your machine (e.g., Wulftec WRT, Lantech Q-300), the current dimensions (OD/ID/Length), or send us photos/drawings. Don't have the specs? Send us a worn sample for reverse engineering.
Dimensions actuelles de vos rouleaux
Photos ou échantillons si disponible

2. Receive Our Proposal

We will provide a detailed technical quote including material options, specific hardness recommendations, and customized production lead times tailored to your schedule.
Délais de production personnalisés
Conseils d'experts pour l'optimisation

3. Production & Fast Dispatch

Once approved, your rollers are manufactured in-house under rigorous quality control. We offer fast shipping across Quebec, Canada, and the USA to minimize your downtime.
Contrôle qualité rigoureux
Expédition rapide partout au Québec

Frequently Asked Questions: Pre-Stretch Rollers

A pre-stretch roller is a precision-coated component (usually in pairs) that mechanically stretches the film between two points before applying it to the pallet. By spinning the secondary roller faster than the primary, it elongates the film (typically 200% to 300%). This process reduces film consumption by up to 50% and increases load stability.

Film breakage is the #1 sign of worn rollers. If the polyurethane surface is glazed, cut, or worn down, it loses its "tack" (grip). This causes the film to slip, altering the pre-stretch ratio and causing snaps. We solve this by recovering your rollers with a high-grip, cut-resistant Polyurethane that restores traction immediately.

Yes. We manufacture and stock direct replacements that meet or exceed OEM specifications for major brands like Wulftec, Lantech, Orion, Robopac, and Cousins. We use OEM part numbers (cross-reference) to ensure perfect compatibility with your carriage.

Absolutely. You don't need to buy expensive new assemblies. Send us your worn aluminum or steel cores. We strip the old rubber, inspect the bearings, and re-cover them with fresh high-performance Polyurethane. It is a cost-effective and eco-friendly alternative to buying new.

We use a proprietary High-Grip Polyurethane specifically formulated for pre-stretch applications. Unlike standard black rubber, our compound offers superior cut resistance against sharp film edges and maintains its "tacky" surface longer, preventing slippage even at high speeds (high RPM).

Inspect them for:

1) Deep cuts or nicks in the surface.
2) Glazing (shiny, smooth spots) where the film slips.
3) Diameter reduction (wear), which changes the gear ratio and reduces your film savings.

If you see these signs, it's time to swap them out to stop wasting money on film.

Yes. While we stock standard 20" and 30" rollers, we can manufacture custom dimensions on demand. We can adjust the coating thickness to modify the diameter, effectively "fine-tuning" your pre-stretch ratio (e.g., increasing diameter to get more stretch).

For standard items in stock, we offer same-day pickup at our Quebec facility or next-day shipping to Montreal, Toronto, and the US. For custom recovering (refurbishing), our turnaround is fast, with Emergency Rush Services available to minimize your production downtime.

It is technically possible, but we strongly recommend replacing them in pairs. Since the two rollers work together to create a precise differential speed (gear ratio), mixing a new high-grip roller with an old worn one causes uneven tension, leading to film breakage and inconsistent wrapping.

Yes, provided the mandrel length matches. Our standard rollers accommodate the most common film widths (20-inch and 30-inch carriages). We verify the "face length" to ensure full film coverage.
